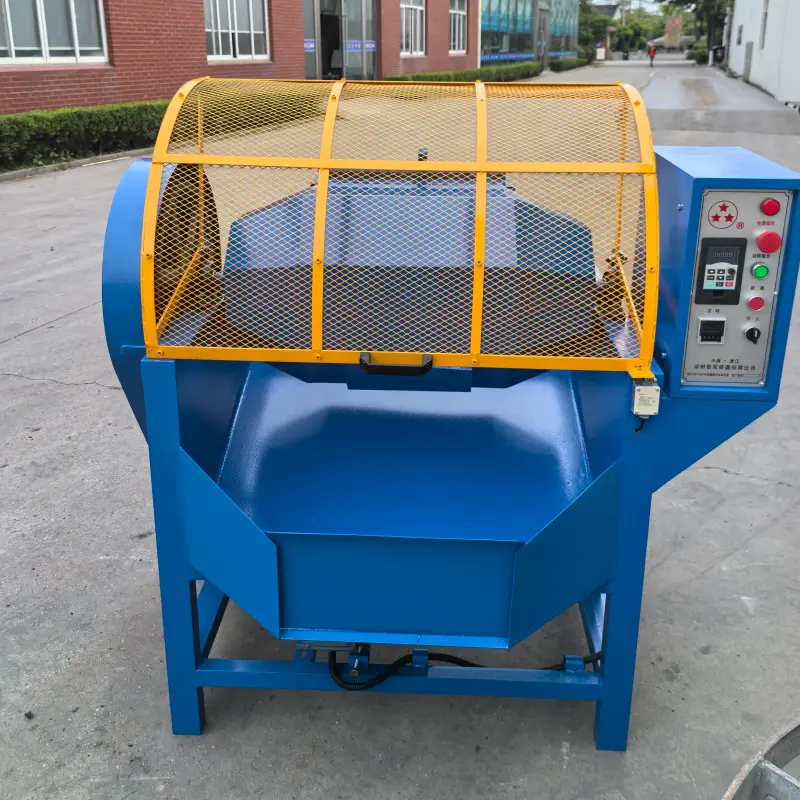

WEYTRUST olive barrel tumbling machine is optimized with hexagonal/olive shaped barrel design, specially engineered for miniature & precision metal component surface finishing. Compared with ordinary round barrel tumbler, olive inner structure improves parts collision uniformity, eliminates polishing dead corners. This model supports both wet abrasive grinding and dry high-gloss mirror polishing, widely used across hardware, jewelry, electronics, auto fastener industries for mass deburring, rust removal, chamfering and bright finishing. All barrel inner walls adopt wear-resistant PU lining to prevent workpiece scratch and extend service life.
⚙️ Unique olive barrel design for uniform polishing without dead zone
✨ Complete deburring, chamfering & mirror finishing in one machine
💧 Support both wet grinding and dry high-gloss polishing
📌 Customizable barrel capacity from 50L to 400L
🛡️ Thick PU lining protects workpieces and prolong service life
🏭 Factory direct sale with stable production & reliable after-sales
| Model | Capacity (L) | Power (Kw) | Voltage (V/HZ) | Speed (rpm) | Weight (Kg) | A (mm) | B (mm) | Sides (n) | L (mm) | W (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXGP-B100 | 100 | 1.1 | 380/50 | 30~35 | 260 | 900 | 240 | 6 | 1390 | 850 | 1100 |
| XXGP-B300 | 300 | 2.2 | 380/50 | 30~35 | 460 | 1000 | 290 | 8 | 1560 | 1220 | 1360 |
| XXGP-B500 | 500 | 4 | 380/50 | 30~35 | 620 | 1180 | 330 | 8 | 1760 | 1280 | 1480 |
| XXGP-B300F | 300 | 4 | 380/50 | 30~35 | 480 | 1000 | 290 | 8 | 1670 | 1220 | 1480 |
F=Full Safety Cover
This 100L B-series olive barrel tumbler supports wet & dry dual polishing with wear-resistant PU lining for uniform burr removal and mirror finishing.
